Render
Lamps / Table lamp, two-piece
Reef Diagrid
A woven diamond shell over a frosted core.
A$189 AUD · incl. GST
Made to order · 2–3 weeks · yours ships by 16 October
Reef Diagrid is two prints that do different jobs. The outer shell is a woven diamond lattice — fourteen rows of struts that lean, cross and thicken into small nodes where they meet, so the light leaves in a pattern rather than a glare. Inside it, a frosted sleeve carries the source: it removes every hot spot, hides the lamp entirely, and turns the shell into something that paints the wall around it.
Designer’s note
The lattice is the whole argument. A pierced shade is easy; a woven one has to hold itself up while it leans, which is why every strut is angled no more than 42° from vertical and meets its neighbours on a 5.5 mm node. That is also why it prints with no supports at all — nothing in the shell ever spans air. Lift the shell off and the frosted sleeve is a quiet lamp on its own.
Formada Studio, Melbourne
Details
- Dimensions

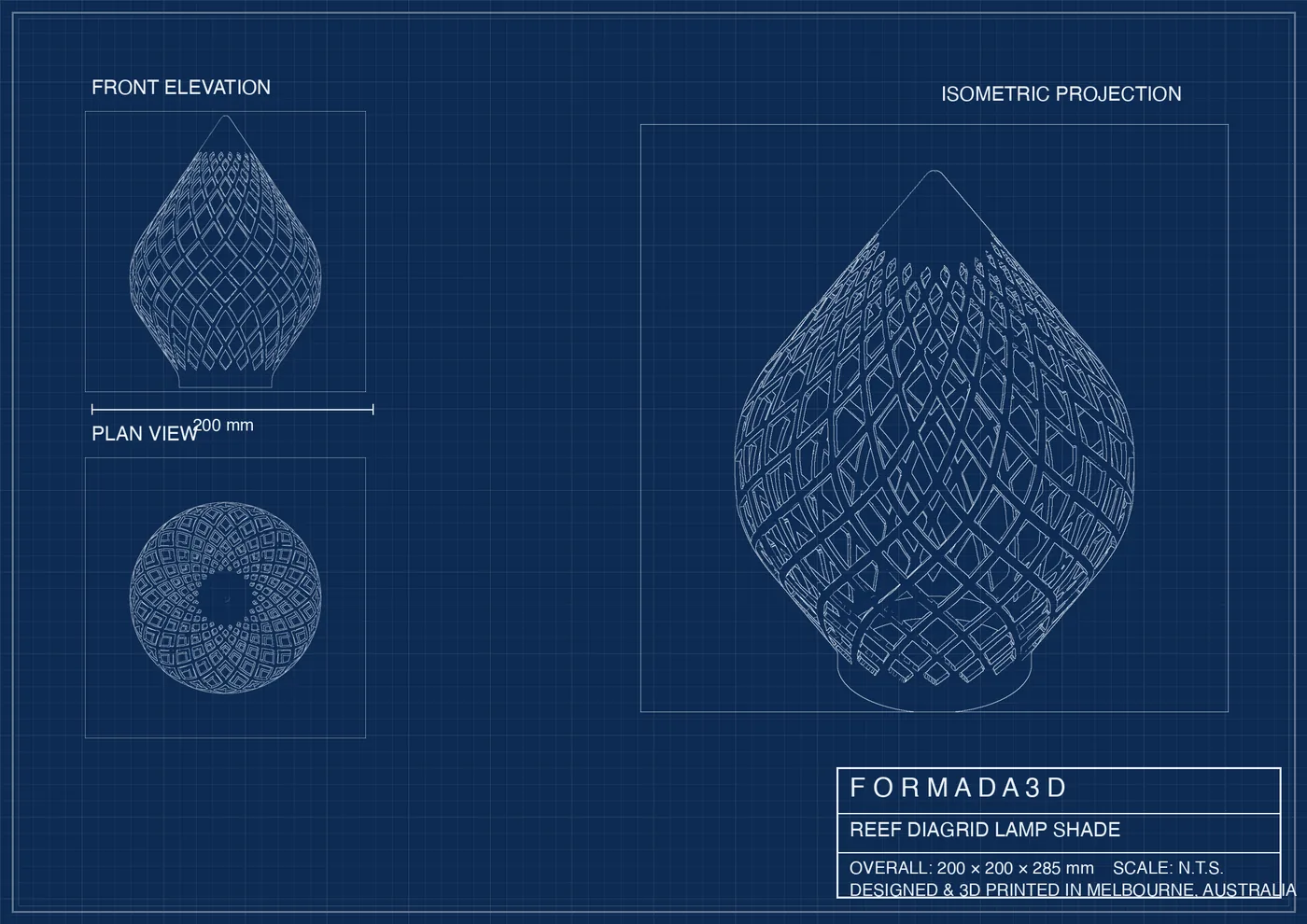

- 312 mm high × Ø200 mm assembled; shell 285 × Ø200 mm, frosted sleeve 250 × Ø88.9 mm, base ring 31 × Ø96.9 mm
- Weight
- ≈ 305 g all three parts (shell 159 g, sleeve 101 g, ring 45 g)
- Material & finish
- Matte PLA shell and base ring, translucent PETG diffuser sleeve Colour options above; every finish is the material’s own — nothing painted or coated.
- Construction
- Two-perimeter lattice, struts 3.2 mm measured; single-wall frosted sleeve 1.2 mm. Printed in one continuous piece per part, no supports, no glue.
- Light source
- Designed around a Ø80 mm LED puck light (USB or battery), which pushes up into the base ring from below. Light source not included — LED only, never incandescent or halogen.
- Light on the wall

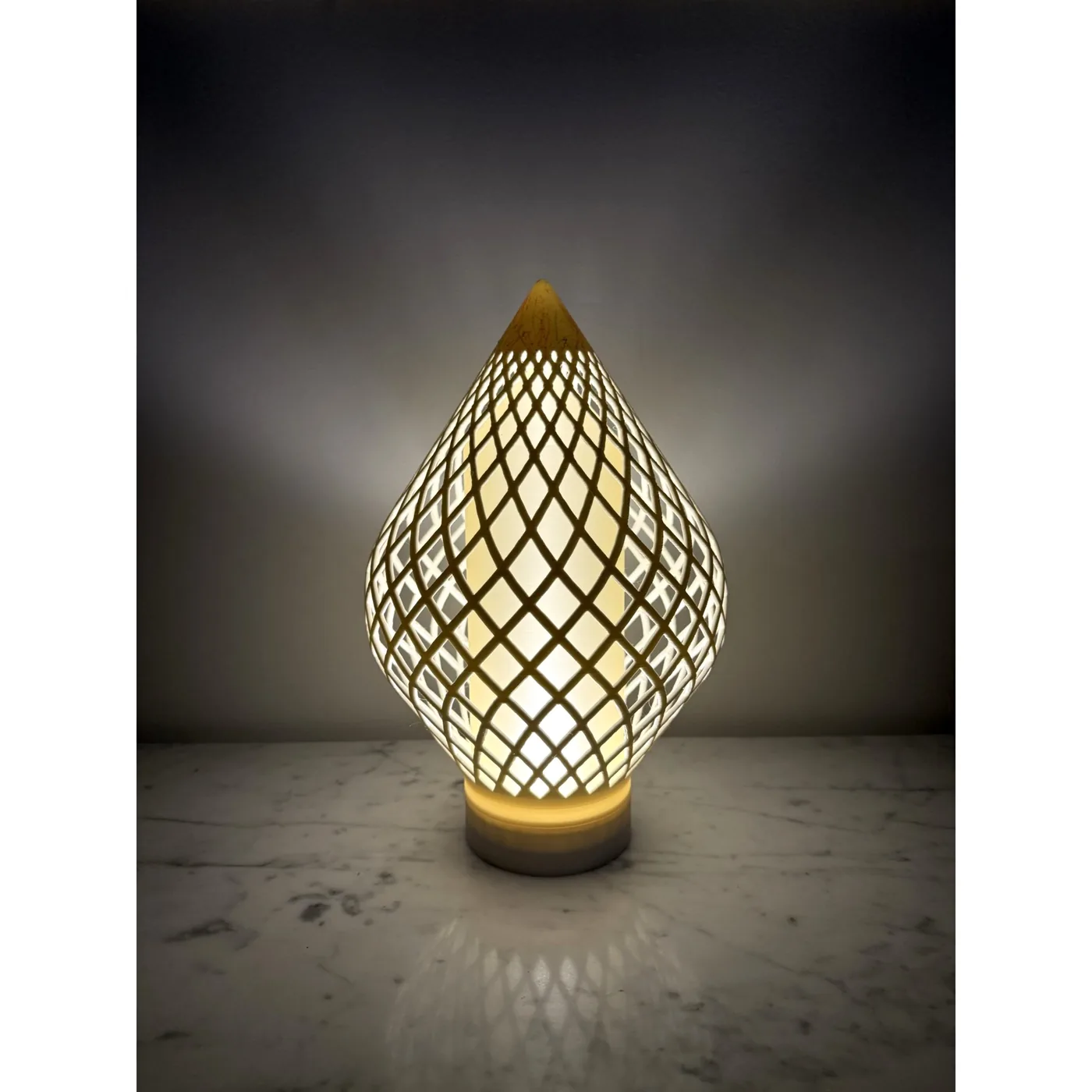

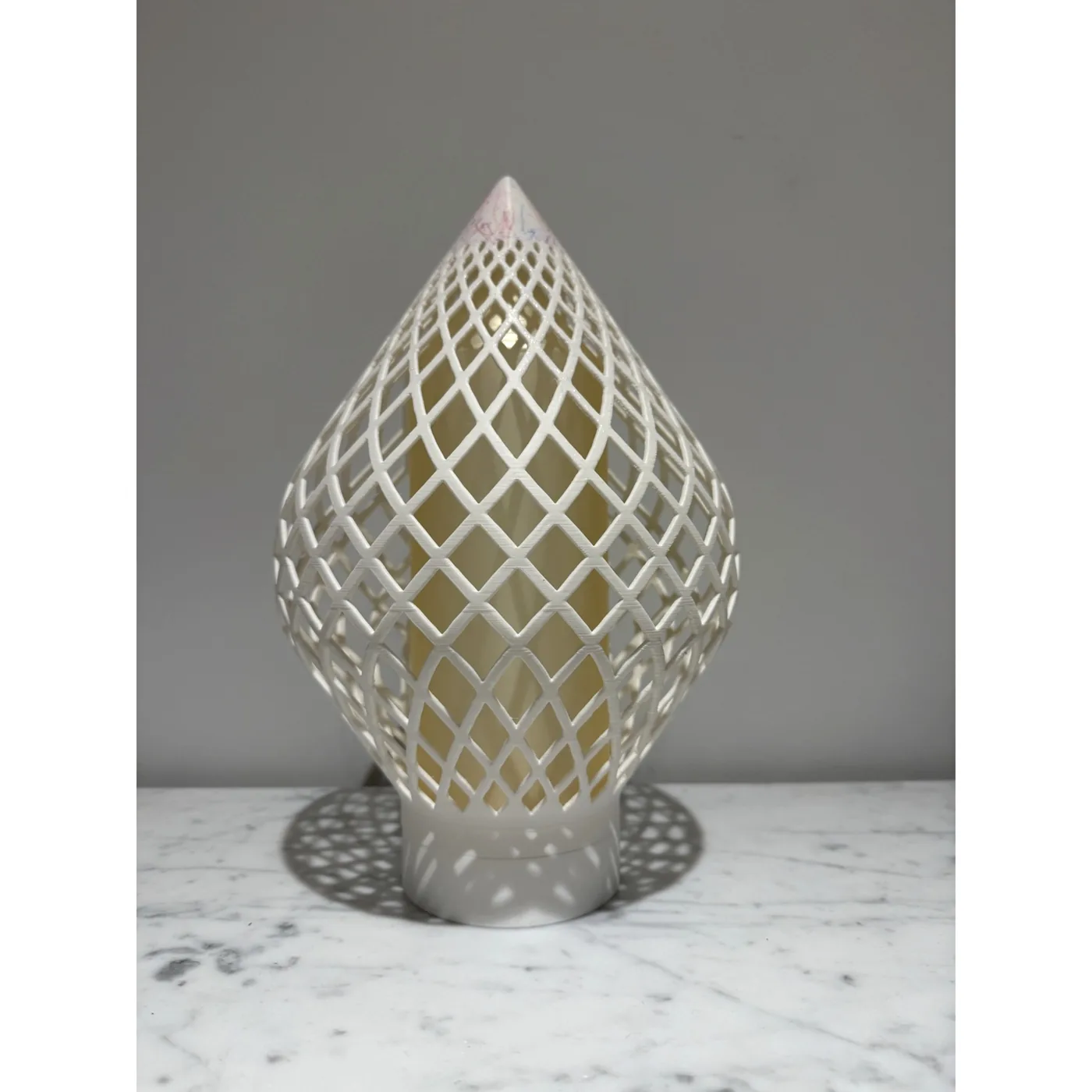

- A woven diamond shadow thrown across the wall and table; an even, sourceless glow through the sleeve.
- Lead time
- Made to order, 2–3 weeks. Orders this week start on Monday 21 September and ship by 16 October.
- Care
- Dust with a soft dry cloth or a cool hair-dryer. Keep away from direct sun and heat above 50 °C. Indoor use.
- Origin
- Designed and printed in Melbourne.
One piece at a time, slowly, in Melbourne.
Colour, base ring, diffuser and an optional engraving. Nothing is stocked; every lamp is printed for its owner.
Orders placed this week go onto the printer from Monday 21 September. Most shades are a single eighteen-to-twenty-hour print.
We email a photograph of your piece on the printer, and again when it is finished and checked.
Packed with the base ring and a signed card, 2–3 weeks from order. FREE AU over $100.
